Oskar self-supporting fume extraction arms are the most versatile, durable and economical method of at-source air pollution capture. Smooth steel tubes, flexible hoses and external joints make Oskar arms easy to work with and keep it in position for required time. Oskar fume arms are available in diameters of 75, 100, 125, 160 and 200 mm. Oskar fume arm unique design has become an industrial standard in air pollution control business.
industrial strength and durability
versatile design
smooth tube construction

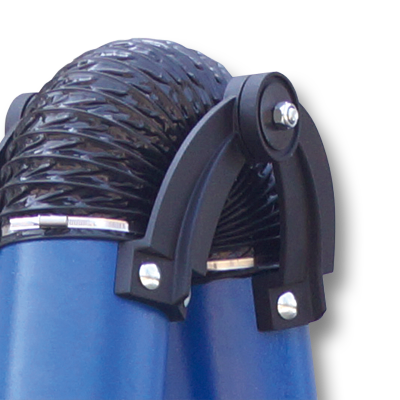

external supports and self-locking joints

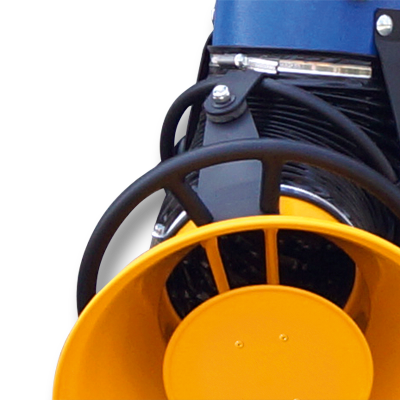

all-around hood and tube grab handles

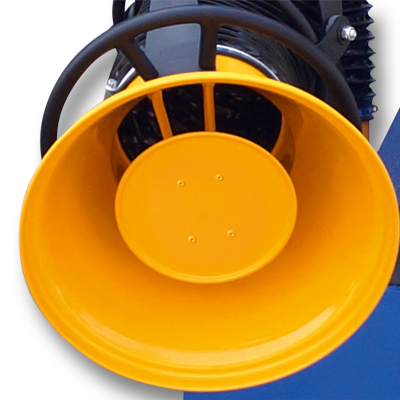

air diverter in the hood

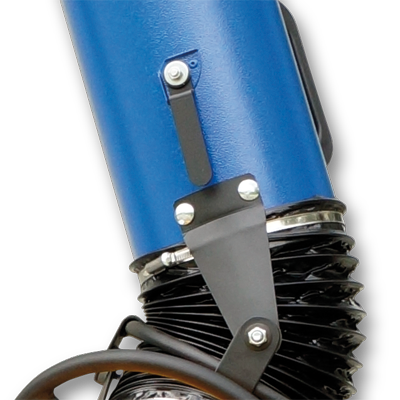

standard damper
exceptionally long operational life time
user friendly construction
better airflow at lower static pressure
low noise performance
easy to adjust and maintain
simple and stable positioning
higher capture velocity

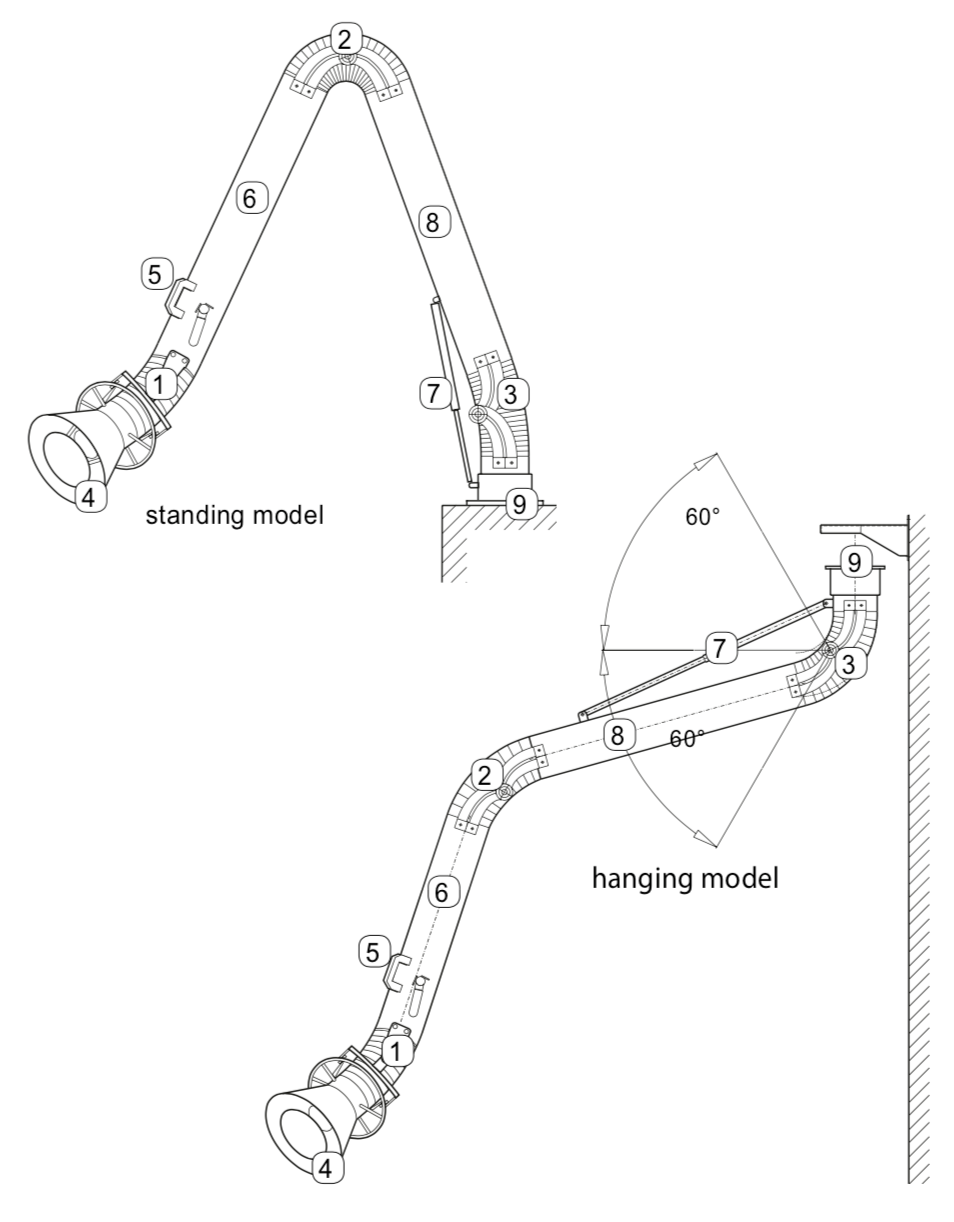

Oskar self-supporting fume extraction arm construction
- Hood joint – positions forward, backward and sideways, flexible hose with gear clamps, external adjustments.
- Middle joint – flexible hose with gear clamps, external adjustments. Models 75 and 100 steel joints. Models 125, 160, 200 cast aluminium joints.
- Socket joint – flexible hose with gear clamps, external adjustments. Models 75 and 100 steel joints. Models 125, 160, 200 cast aluminium joints.
- Aluminium hood (powder coated) with grab handle all around, light kit, fan switch, photosensor options.
- Tube grab handle.
- Hood tube – smooth steel tubing (powder coated or galvanized) with standard damper.
- Full enclosed support spring in hanging and gas shock in standing models.
- Socket tube – smooth steel tube (powder coated or galvanized).
- Rotating socket – mounting socket with safety stop.
Oskar arms – standard models
| Arm diameter [mm] | Arm reach [m] | Hood inlet (option) [mm] | Standing models | Hanging models |
|---|---|---|---|---|
| 75 | 1,0 | 160 | 0710 | 0710P |
| 75 | 1,5 | 160 | 0715 | 0715P |
| 100 | 1,5 | 200 | 1015 | 1015P |
| 100 | 2,0 | 200 | 1020 | 1020P |
| 100 | 2,5 | 200 | 1025 | 1025P |
| 125 | 2,0 | 250 | 1220 | 1220P |
| 125 | 2,5 | 250 | 1225 | 1225P |
| 125 | 3,0 | 250 | 1230 | 1230P |
| 160 | 2,0 | 315 (500) | 1620 | 1620P |
| 160 | 3,0 | 315 (500) | 1630 | 1630P |
| 160 | 4,0 | 315 (500) | 1640 | 1640P |
| 200 | 2,0 | 350 (500) | 2020 | 2020P |
| 200 | 3,0 | 350 (500) | 2030 | 2030P |
| 200 | 4,0 | 350 (500) | 2040 | 2040P |
