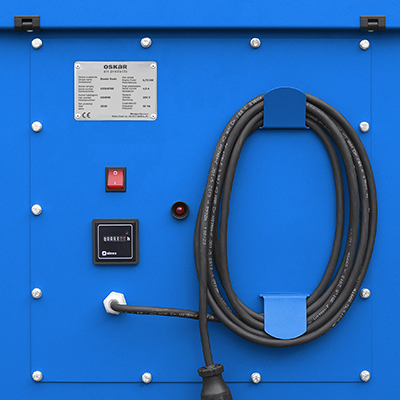

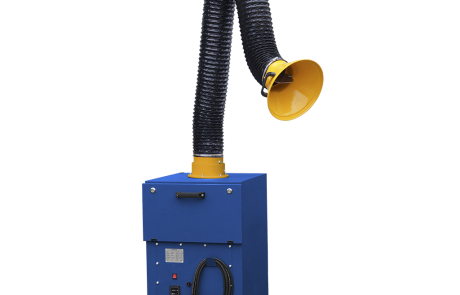

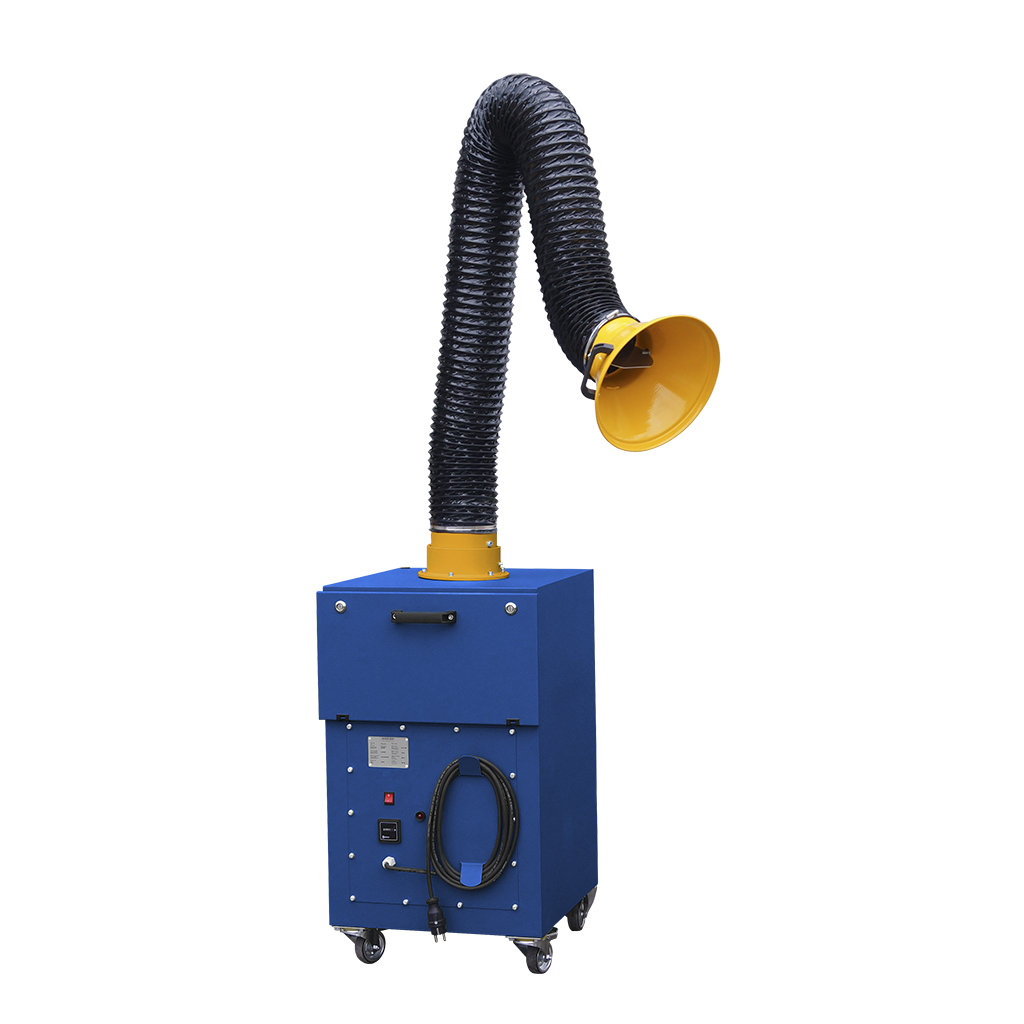

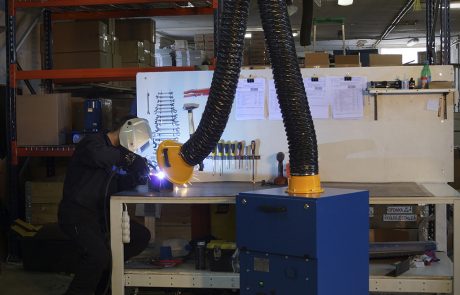

Boxair Basic mobile cassette filter

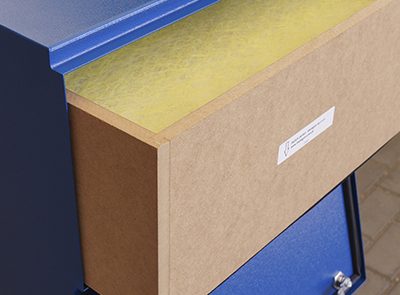

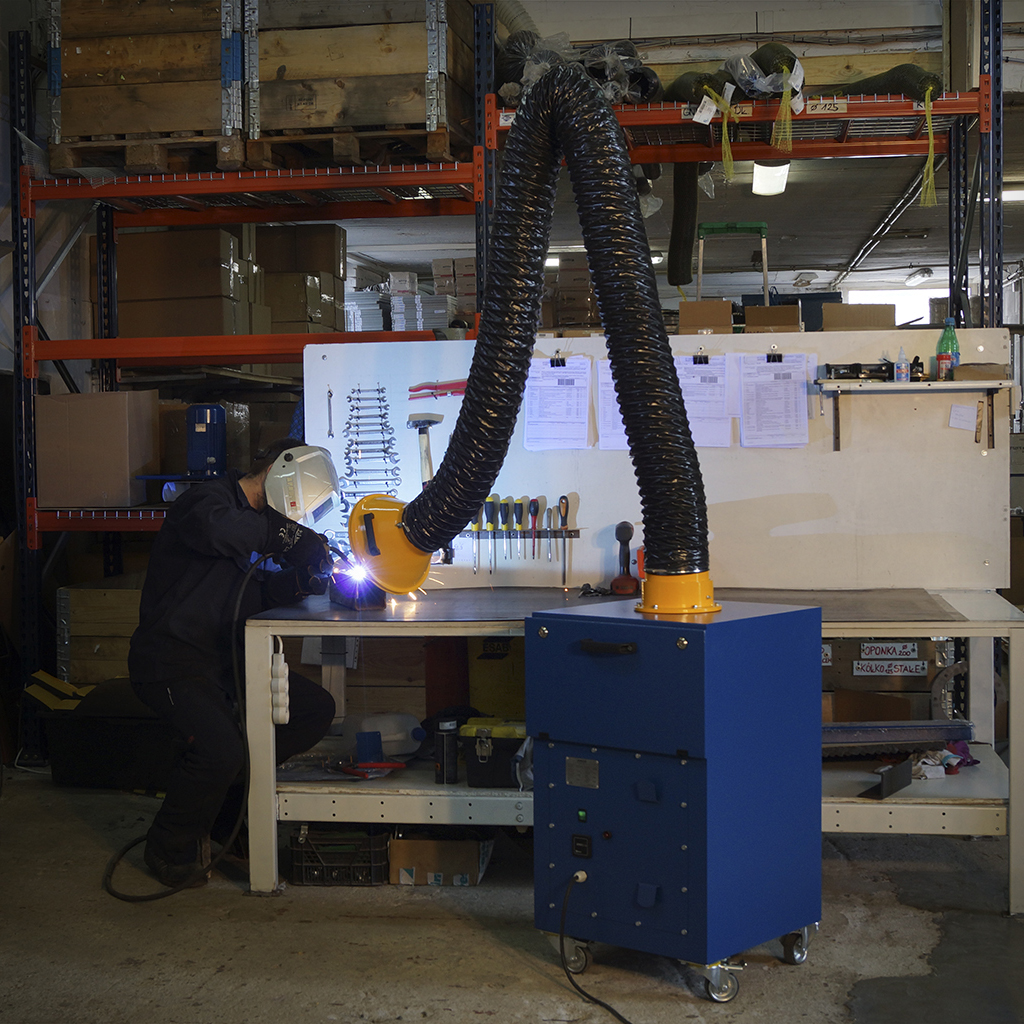

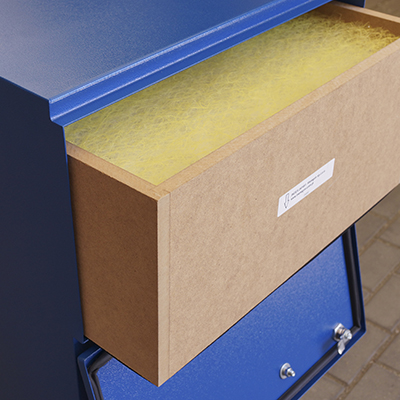

Mobile casette filter unit Boxair Basic is designed for extraction and filtration of welding fumes and dust. Its main features are compact dimensions, solid steel construction and high maneuverability. Boxair Basic mobile filter unit consists of a G2 class filtration mat, secondary M5 class filter cartridge and a disposable F9 class main compact filter. The recommended equipment for the Boxair Basic filter unit is the Econ fume extraction arm with a range of 2 meters.
airflow 950 m3/h
aluminium impeller 0,75kW fan unit
three stage filtration
filter indicator
steel, welded and powder coated construction

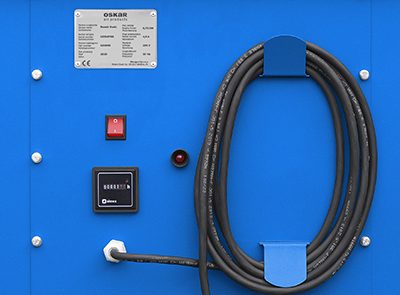

service hour meter
ready for Econ 160

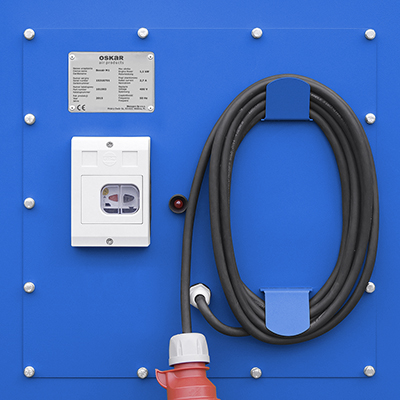

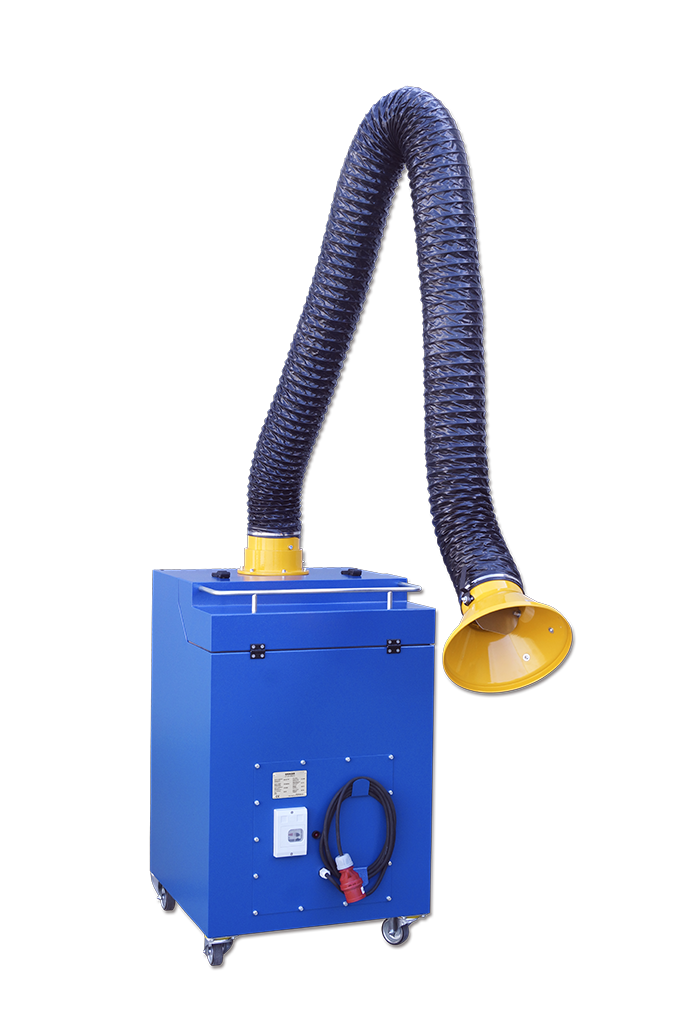

Boxair M1 mobile cassette filter

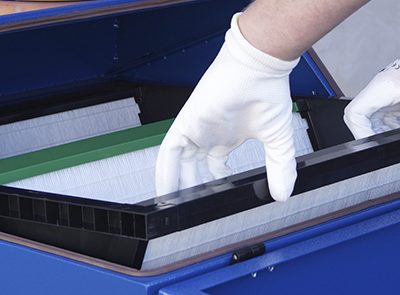

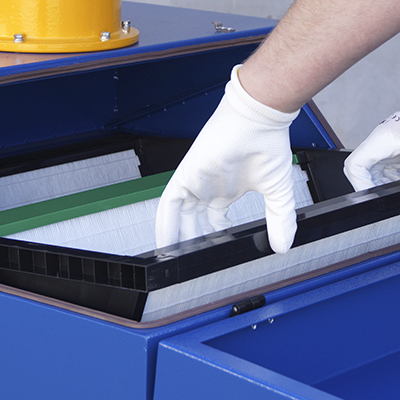

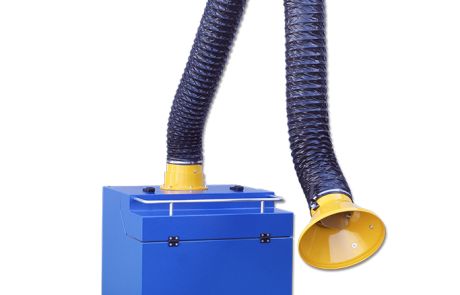

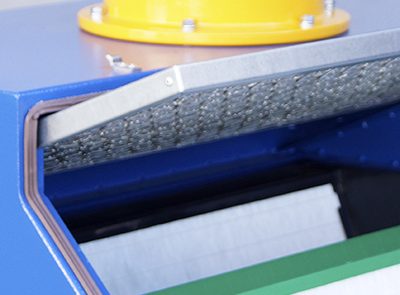

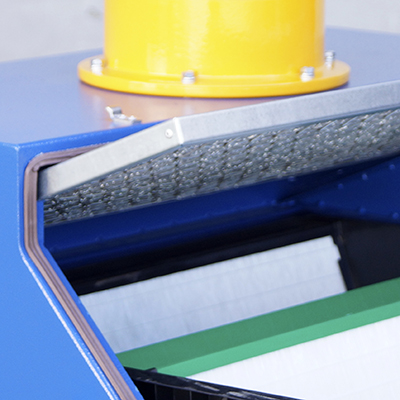

Boxair M1 is a mobile filter unit designed for designed for extraction and filtration of of fumes and dust created mainly during welding processes. Boxair M1 allows at-source air pollution capture thanks to use of fume extraction arm Econ or Oskar 160 series. Filter set consist of a metal mesh pre-filter and F9 class disposable main compact filter.
airflow 1000 m3/h
aluminium impeller 1,1 kW fan unit
two stage filtration
filter indicator
easy access to filters
steel, welded and powder coated construction
ready for Econ 160 or Oskar 160 fume arms

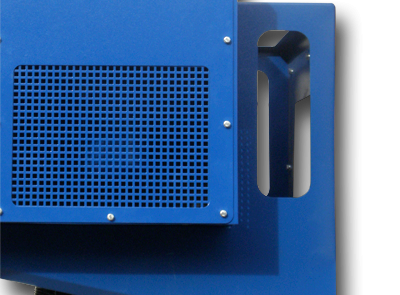

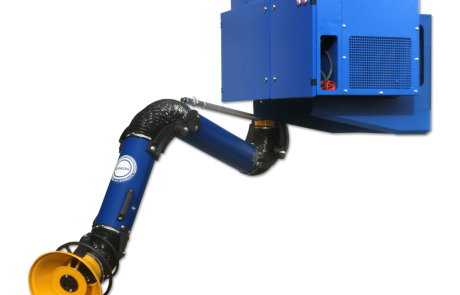

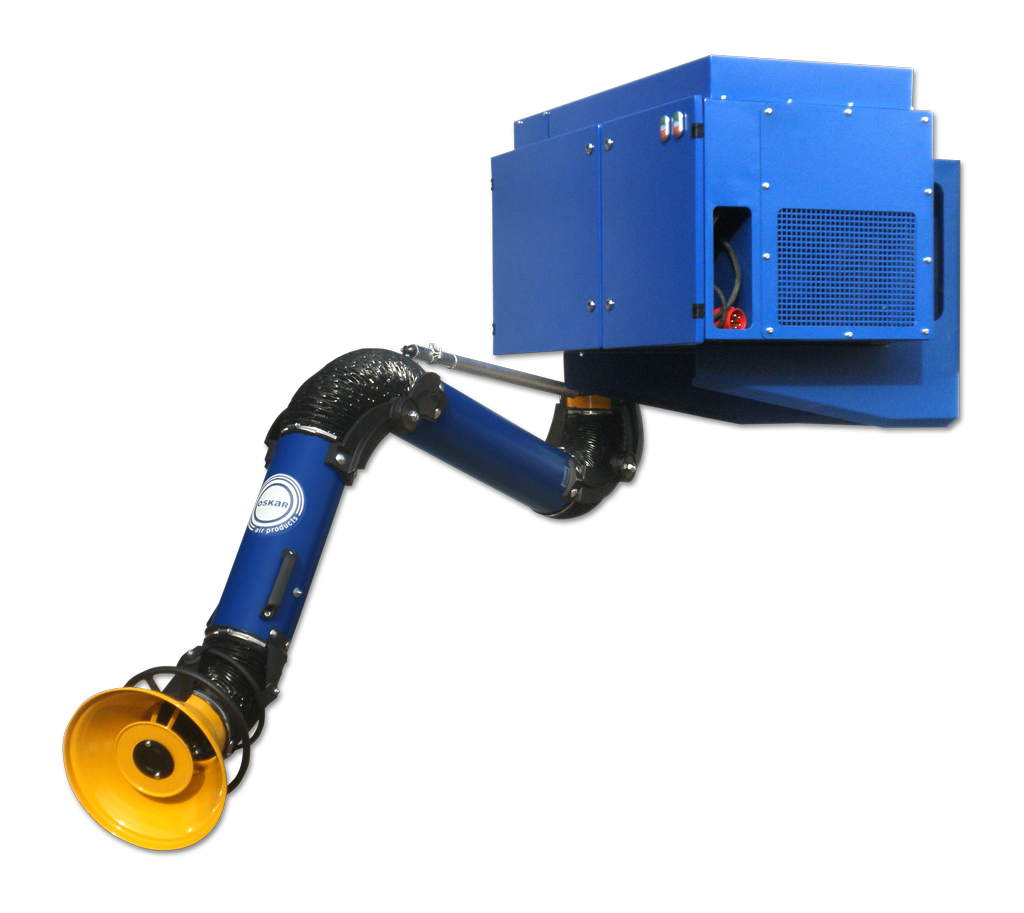

Crawlair Overhead cartridge filter

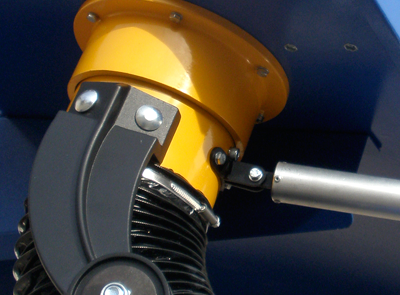

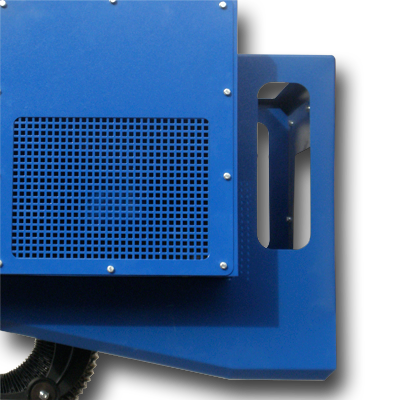

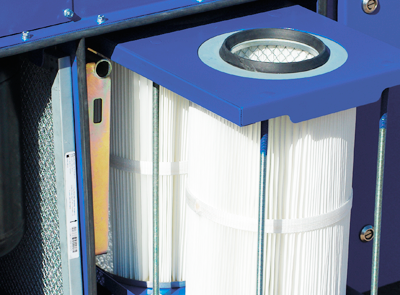

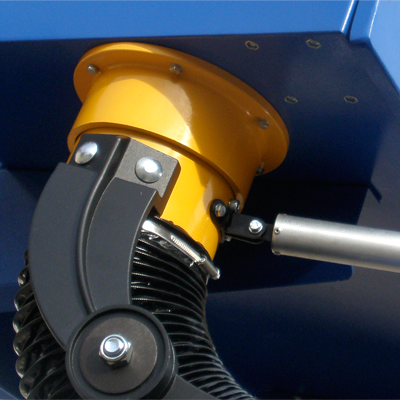

Crawlair Overhead cartridge filter is designed for dry air pollution control like fume or dust at various industrial processes (especially at welding, grinding, polishing, cutting of metals or plastics). Crawlair Overhead is equipped with metal mesh spark trap filter and two high efficiency (99% at 1μm) polyester filter cartridges which are washed with built-in manual (optional timer controlled) compressed air cartridge cleaning system (10 litre tank built-in). Oskar hanging fume arm models 1620, 1630 or Econ hose arms H1620, H1630 are recommended choice for Crawlair Overhead. As an option Crawlair O can be equipped with automatic start/stop function and LED light-kit for Oskar fume arm.
airflow 1000 m3/h
aluminium impeller 1,1 kW fan unit
three stage filtration
standard manual compressed air cartridge cleaning system
10 litre compressed air tank
easy access dust drawers
simple cartridge maintenance and exchange
2 swivel casters with brakes for more mobility
heavy duty welded and powder coated construction

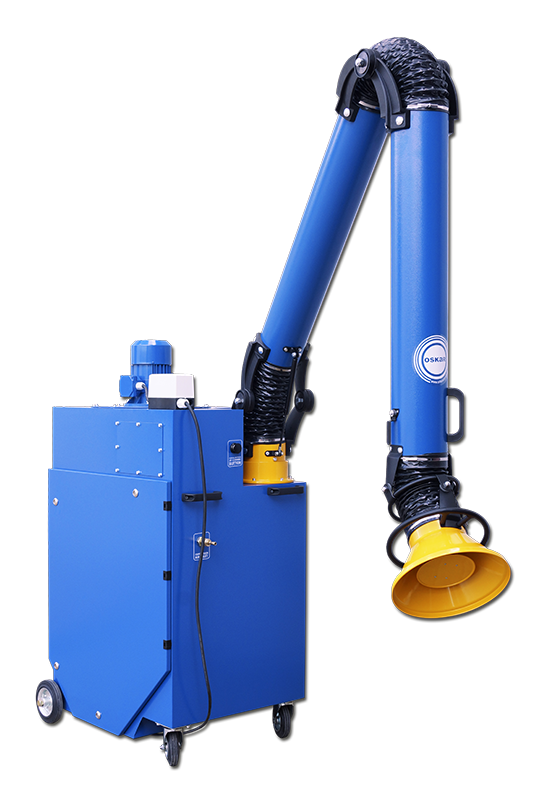

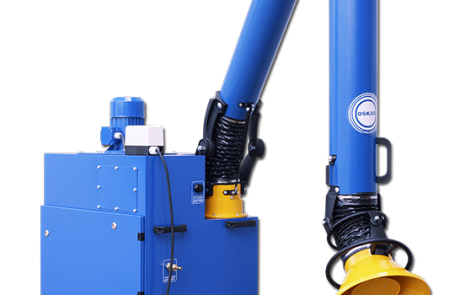

Rollout mobile cartridge filter

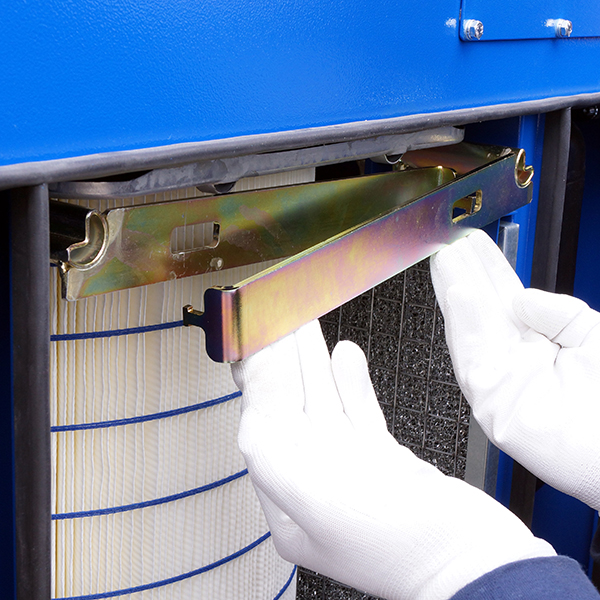

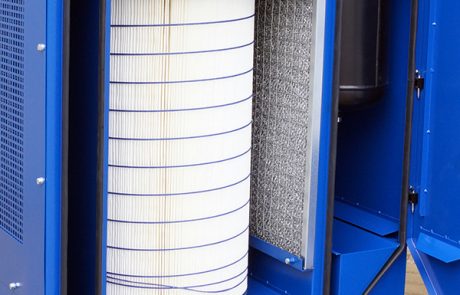

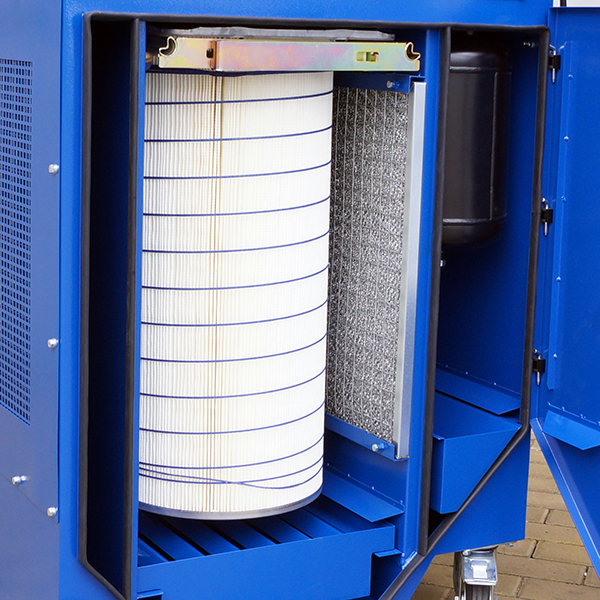

Rollout Mobile Cartridge Filter is designed to exhaust and filter dry air borne pollutants especially at welding, grinding, polishing, cutting of metals and plastics. Rollout features 3 stage filtration with metal mesh prefilter (spark-trap), main cartridge filter and outlet activated carbon filter. Standard manual (timer in option) regeneration system is can be used to clean main cartridge during filter operation. Rollout is advised for most demanding applications where the constant exhaust and filter operation is required. We reco mmend Oskar 160 2 or 3 m models as a at source capture devices with Rollout filters. Optional configurations feature LED lights built-in Oskar arm hood as well as photosensor triggered automatic operation.
airflow 1000 m3/h
aluminium impeller 1,1 kW fan unit
three stage filtration

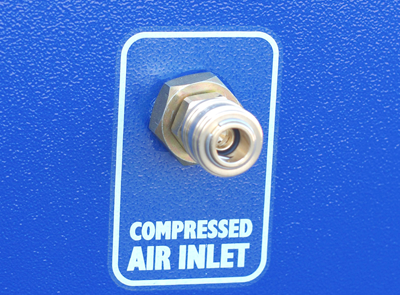

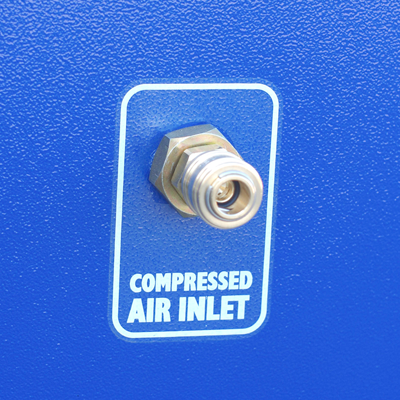

standard manual compressed air cartridge cleaning system
10 litre compressed air tank
easy access dust drawers
simple cartridge maintenance and exchange
2 swivel casters with brakes for more mobility
heavy duty welded and powder coated construction

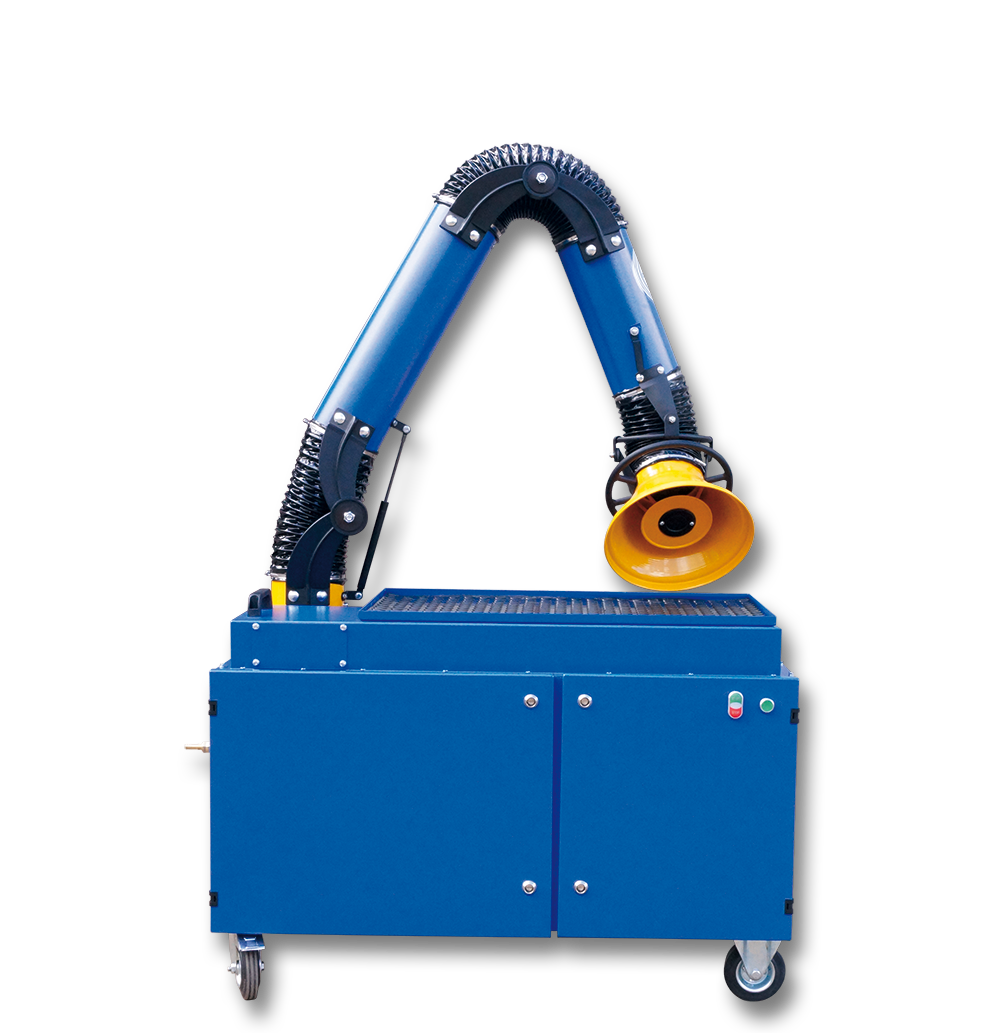

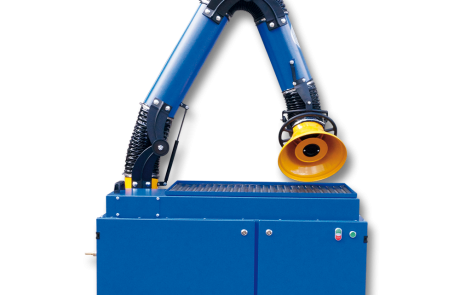

Crawlair Mobile cartridge filter

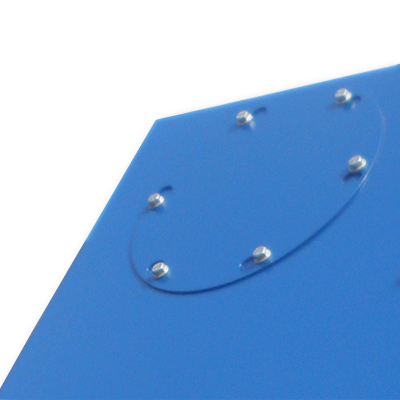

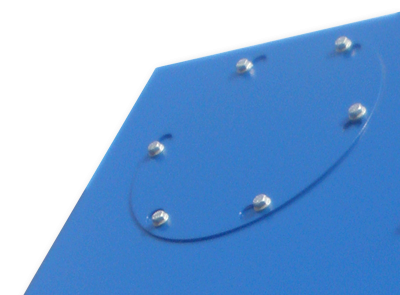

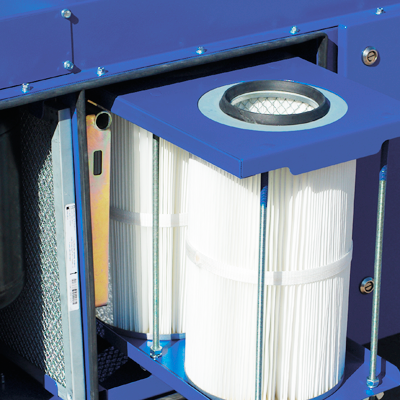

Crawlair Mobile cartridge filter is designed to exhaust and filter dry impurities like fume or dust at various industrial processes (especially at welding, grinding, polishing, cutting of metals or plastics). Crawlair M is equipped with metal mesh spark trap pre-filter and two high efficiency (99% at 1μm) polyester filter cartridges which are washed with built-in manual (optional timer controlled) compressed air cartridge cleaning system (10 litre tank built-in). Thanks to large rear wheels, two swivel casters with brakes and pull handle moving with Crawlair around work area is easy and simple. Oskar 160 fume arm models or Econ 160 hose arms are recommended for at-source fume capture. Additional front air inlet allows connections to other production equipment. As an option Crawlair unit can be equipped with automatic start/stop function and LED light for Oskar fume arms.
nominal airflow 1000 m3/h
1,1 kW aluminium impeller fan unit
two filtration stages
built-in standard compressed air cartridge cleaning system
10 litre compressed air tank
standard waste and dust drawers
easy filter module maintenance and exchange
2 swivel casters with brakes

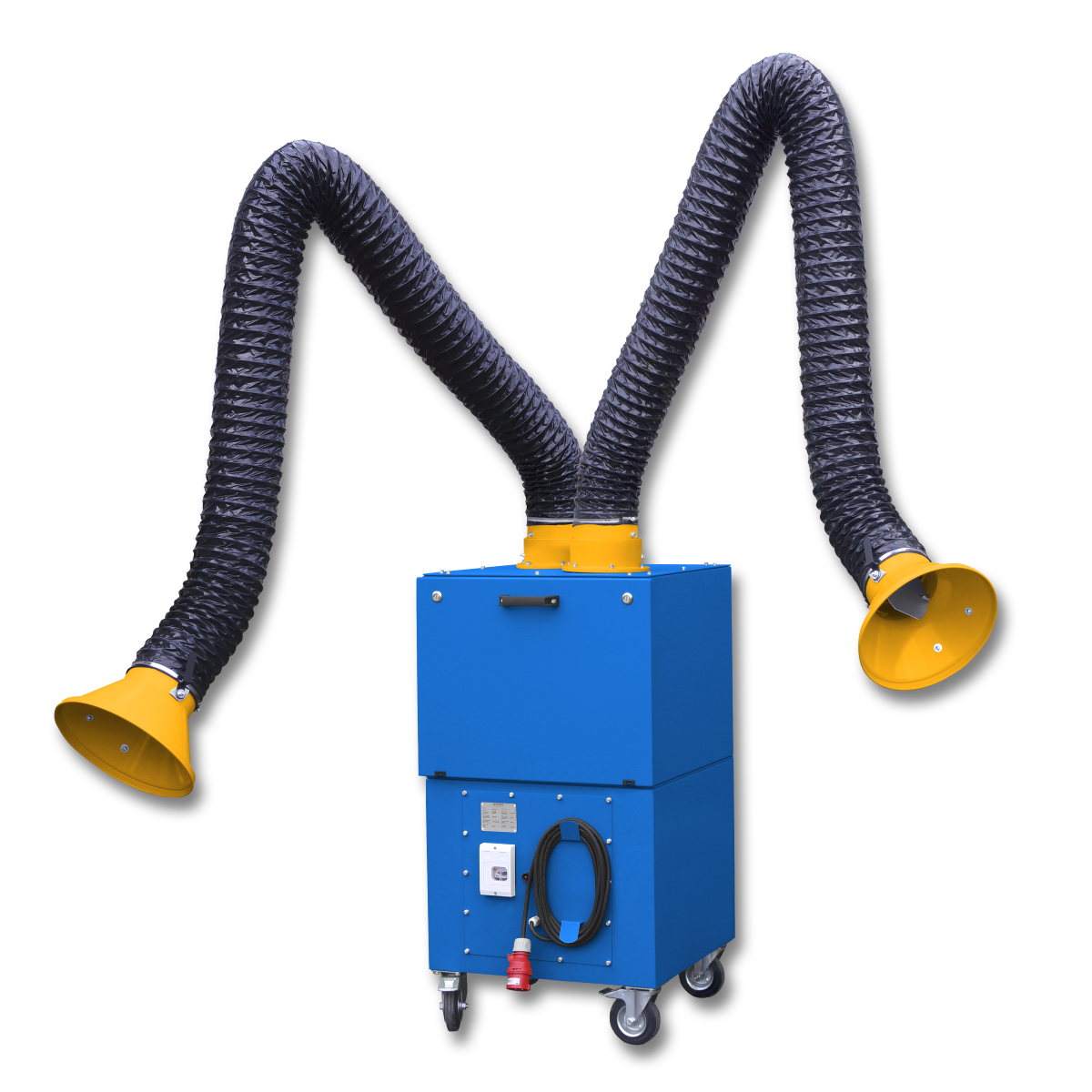

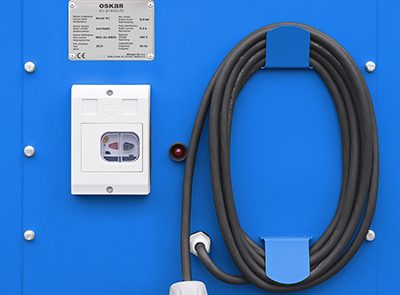

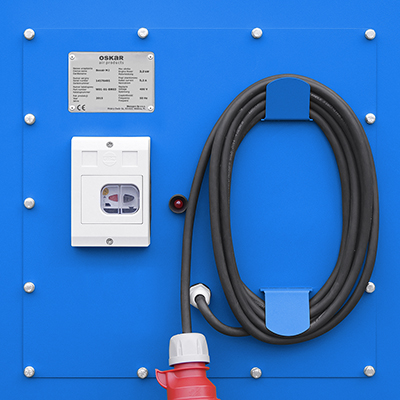

Boxair M2 mobile cassette filter

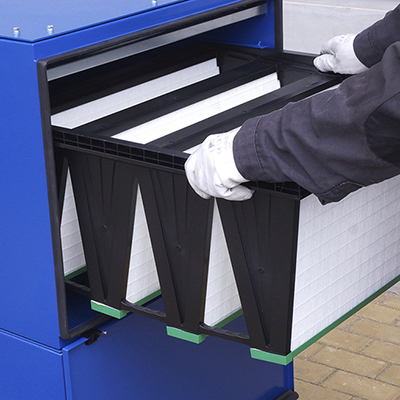

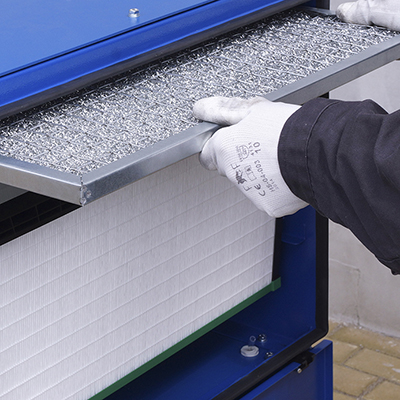

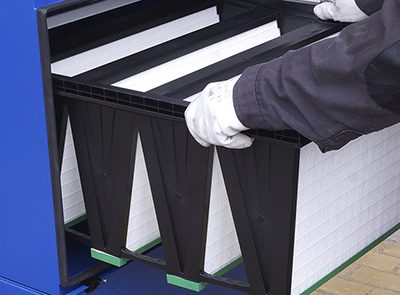

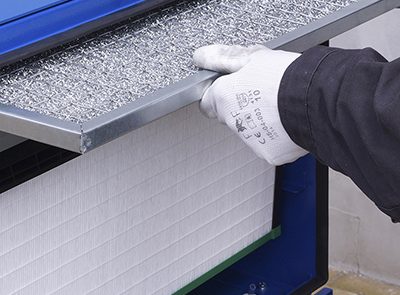

Boxair M2 is a mobile filter unit designed for designed for extraction and filtration of of fumes and dust created mainly during welding processes. Boxair M2 allows at-source air pollution capture thanks to use of fume extraction arm Econ or Oskar 160 series. Filter set consist of a metal mesh pre-filter and F9 class disposable main compact filter
airflow 2000 m3/h
aluminium radial impeller 2,2 kW fan unit
two filtration stages
easy access to filters
full mobility with 4 casters (two with brakes)
welded and powder coated construction
ready for 160 fume arms
