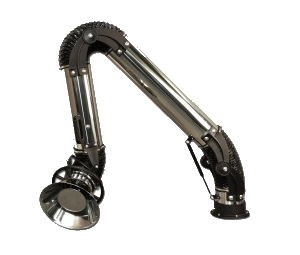

Oskar stainless fume extraction arms are the most advanced, versatile, and durable method of capturing air pollution at its source. Oskar arm duct (from hood to mounting swivel) is made of stainless steel. Depending on application demand Oskar stainless arm can be configured with stainless joints (models 75 and 100), raw or anodized aluminium elements, food grade, high temperature resistant or electrically conductive elastic hoses. Large choice of components combinations makes Oskar stainless arm one of the most versatile products in its group.
industrial strength and durability
versatile design
smooth tube construction

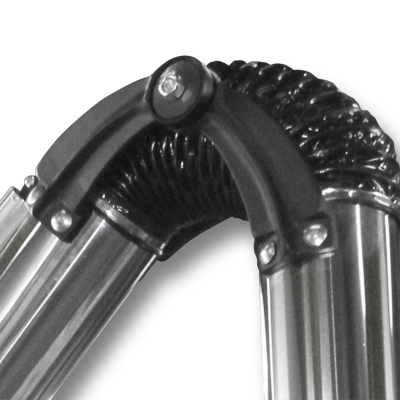

external supports and self-locking joints

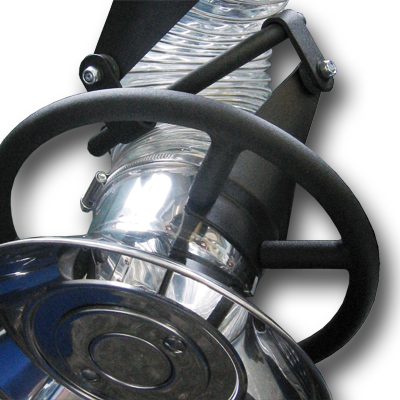

all-around hood and tube grab handles
air diverter in the hood

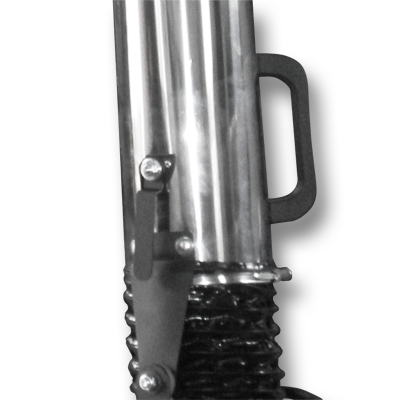

standard damper
exceptionally long operational life time
user friendly construction
better airflow at lower static pressure
low noise performance
easy to adjust and maintain
simple and stable positioning
increased capture velocity

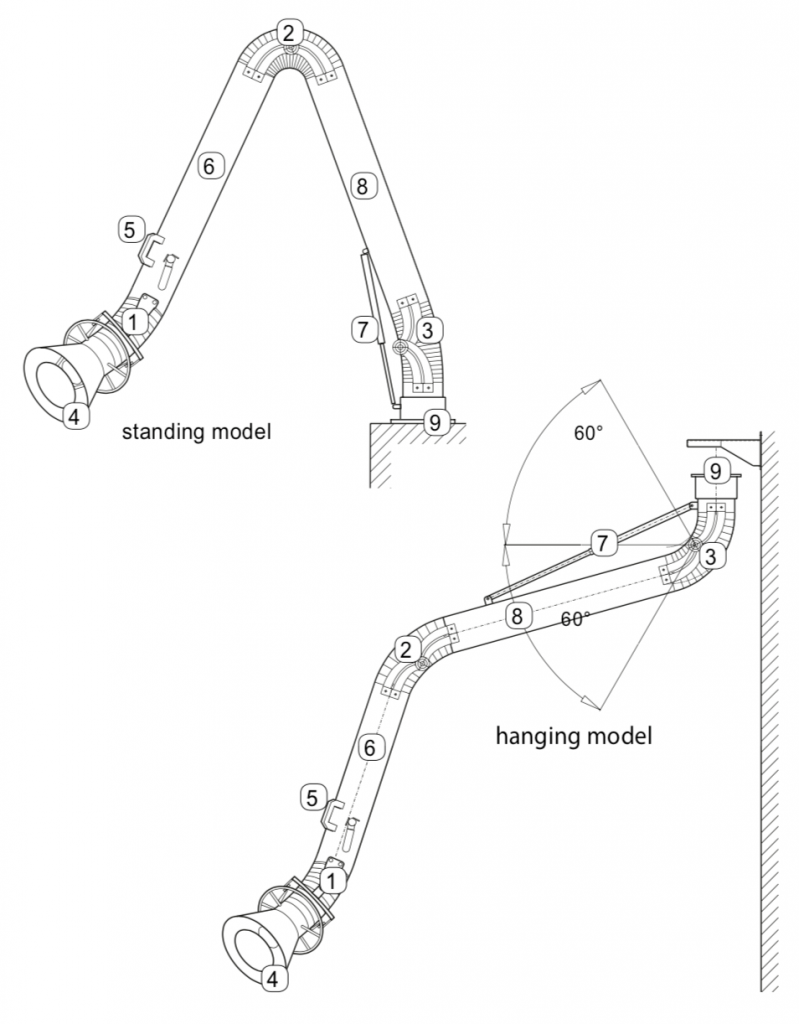

Oskar self-supporting fume extraction arm construction
1. Hood joint – positions forward, backward and sideways, flexible hose with gear clamps, external adjustments
2. Middle joint – flexible hose with gear clamps, external adjustments. Models 75 ad 100 steel or stainless joints. Models 125, 160, 200 cast
aluminium joints.
3. Socket joint – flexible hose with gear clamps, external adjustments. Models 75 ad 100 steel or stainless joints. Models 125, 160, 200 cast
aluminium joints.
4. Stainless steel hood with grab handle all around and stainless steel air diverter
5. Tube grab handle
6. Stainless steel hood tube – smooth tubing with standard stainless steel damper
7. Telescopic spring in hanging and gas shock in standing models
8. Stainless steel socket tube
9. Rotating mounting socket (stainless inside)
Oskar arms – standard models
| Arm diameter [mm] | Arm reach [m] | Hood inlet (option) [mm] | Standing models | Hanging models |
|---|---|---|---|---|
| 75 | 1,0 | 160 | 0710 | 0710P |
| 75 | 1,5 | 160 | 0715 | 0715P |
| 100 | 1,5 | 200 | 1015 | 1015P |
| 100 | 2,0 | 200 | 1020 | 1020P |
| 100 | 2,5 | 200 | 1025 | 1025P |
| 125 | 2,0 | 250 | 1220 | 1220P |
| 125 | 2,5 | 250 | 1225 | 1225P |
| 125 | 3,0 | 250 | 1230 | 1230P |
| 160 | 2,0 | 315 (500) | 1620 | 1620P |
| 160 | 3,0 | 315 (500) | 1630 | 1630P |
| 160 | 4,0 | 315 (500) | 1640 | 1640P |
| 200 | 2,0 | 350 (500) | 2020 | 2020P |
| 200 | 3,0 | 350 (500) | 2030 | 2030P |
| 200 | 4,0 | 350 (500) | 2040 | 2040P |
